Architectural facade lighting is about more than making a building visible at night. The right lighting design can emphasize architectural lines, improve the visual presentation of a commercial property and create different nighttime appearances through carefully controlled color and brightness.
For a commercial building facade lighting project in Texas, USA, Creativity LED provided a ETL listed 50W DMX RGBW LED wall washer lighting solution. The project focused on uniform facade illumination, dynamic RGBW color effects and reliable outdoor operation.
In addition to supplying the lighting fixtures, Creativity supported the project with DIALux lighting simulation, fixture layout optimization and technical assistance. The objective was to help the customer evaluate the proposed lighting arrangement before installation and implement a suitable architectural lighting solution.

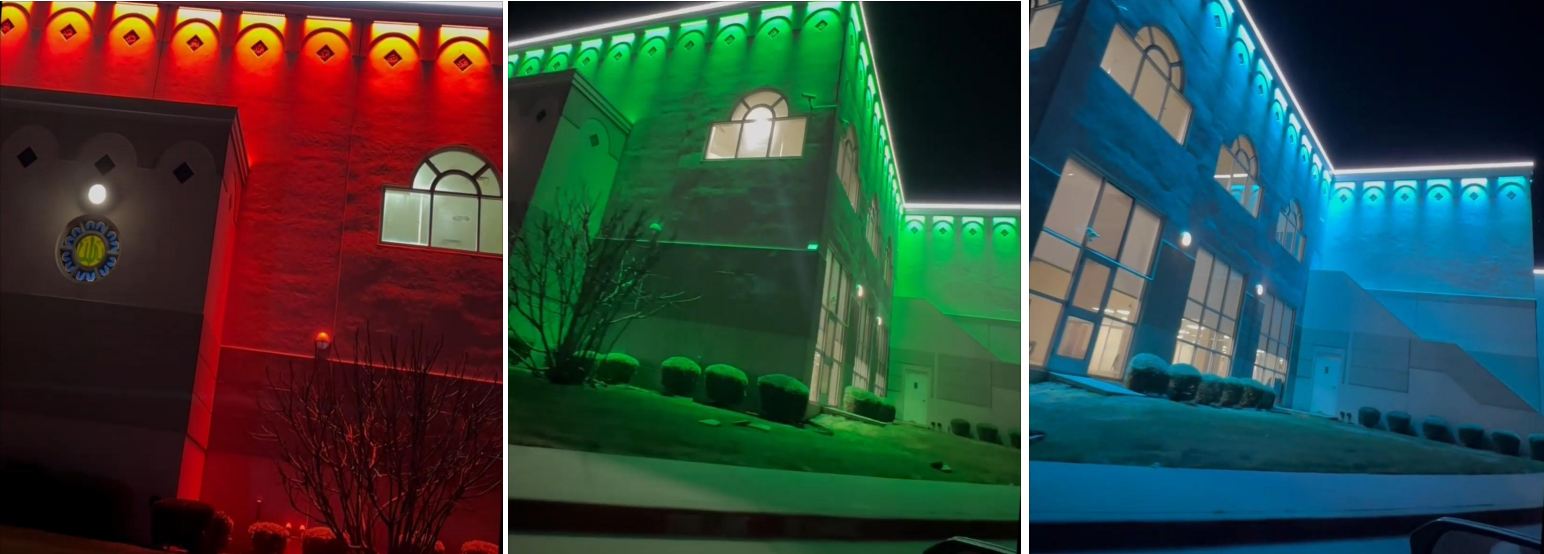

The project involved architectural facade lighting for a commercial building in Texas, where the lighting system needed to combine visual impact with practical installation requirements.
Project details
Location: Texas, USA
Application: Commercial architectural facade lighting
Lighting fixture: 50W DMX RGBW LED wall washer https://www.szriotinto.com/120v-etl-wall-washer/
Color configuration: RGBW
Lighting control: DMX512
Engineering support: DIALux lighting simulation and fixture layout optimization
Project objective: Uniform facade illumination with programmable color-changing effects
The selected RGBW LED wall washer provides a lighting approach for commercial buildings that require both architectural highlighting and flexible color effects.
For facade lighting contractors, the project also demonstrates why fixture selection, optical distribution, control compatibility and installation layout should be evaluated together rather than treated as separate decisions.
A building facade can contain different architectural features, including flat wall surfaces, columns, entrances, textured materials and projecting elements. Lighting these surfaces evenly requires careful consideration of the relationship between the fixture and the building.
A conventional white LED wall washer is often selected when the primary objective is to highlight a building's structure or provide a consistent white-light appearance. An RGBW LED wall washer adds the ability to change colors while retaining a dedicated white LED channel.
This makes RGBW architectural lighting useful for commercial properties that want to adapt their nighttime appearance for different occasions, seasonal campaigns or brand-related events.
RGBW lighting combines red, green, blue and white LED channels. By controlling the RGB channels, the lighting system can create different colors and programmed lighting scenes. The dedicated white channel provides an additional option for white-light operation.
For a commercial building, this flexibility can support different facade presentations without requiring the entire installation to rely on fixed-color fixtures.
When DMX512 control is used, compatible fixtures can be programmed to operate individually or in groups, depending on the control architecture and installation requirements.
Uniformity is one of the main considerations in architectural facade lighting. Uneven fixture spacing, unsuitable beam angles or incorrect mounting distances can produce bright spots, dark bands and inconsistent color distribution.
A professional LED wall washer project should consider the wall height, fixture setback, beam distribution, mounting orientation and spacing between adjacent fixtures.
For RGBW installations, the design should also consider how color mixing and output distribution affect the appearance of the facade.
The Texas project included DIALux simulation and fixture layout optimization to help evaluate the proposed lighting arrangement before installation.
Commercial buildings often use exterior lighting to reinforce their visual identity. RGBW facade lighting can provide different color schemes for special events, seasonal displays or other planned occasions.
The actual appearance depends on the building materials, fixture optics, viewing distance and selected color settings. These factors should be considered during the design stage to ensure that the lighting complements the architecture instead of overwhelming it.
The nominal wattage of an LED wall washer is only one part of its performance. A 50W fixture may be suitable for a particular facade application, but the final result depends on its optical characteristics and the installation geometry.
Before selecting a wall washer for a commercial building, project teams should review several technical factors.
Beam angle and light distribution: The beam needs to match the wall dimensions and mounting distance. A narrow distribution may suit certain architectural features, while a wider distribution may be more appropriate for broader surfaces.
Mounting distance: The distance between the fixture and the wall influences coverage and uniformity. Incorrect positioning can create uneven illumination even when the selected wattage is appropriate.
RGBW color mixing: The fixture's optical design and LED arrangement affect how colors blend across the illuminated surface. This is particularly important when adjacent fixtures need to create a consistent color appearance.
Outdoor protection: The required IP rating, housing construction, cable connections and installation details should be checked against the actual outdoor environment.
Control compatibility: The fixture, decoder and controller need to support the intended DMX512 configuration and the required lighting scenes.
For this reason, choosing a suitable RGBW LED wall washer requires more than comparing wattage and price. The fixture must work within the complete facade lighting design.
DMX512 is widely used in professional architectural and entertainment lighting because it allows compatible lighting fixtures to receive digital control commands through a lighting network.
For an RGBW LED wall washer installation, DMX512 can support color selection, channel adjustment, dimming and coordinated lighting scenes, subject to the fixture's channel configuration and controller capabilities.
For example, a commercial property may use one color scheme during normal operation and a different lighting scene for a special event. With a properly configured system, compatible wall washers can be grouped and controlled to produce coordinated facade effects.
The Texas project used DMX512 control as part of its RGBW architectural lighting solution.
DMX512 is primarily used to transmit lighting control data from the controller to compatible fixtures. DMX-RDM adds Remote Device Management functions, allowing supported controllers and devices to exchange configuration and status information.
RDM can be useful for commissioning and managing compatible lighting equipment, but it requires support from the relevant fixtures and control components.
A project specified for standard DMX512 should not automatically be described as an RDM-enabled installation. Contractors should confirm the required protocol, fixture compatibility, channel mapping and wiring arrangement before ordering equipment.
For architectural lighting projects with multiple fixtures, addressing and control-system planning should be completed before installation to reduce commissioning problems.
Architectural facade lighting needs to be evaluated in relation to the building itself. Fixture wattage alone cannot predict how evenly a wall will be illuminated.
DIALux lighting simulation can help project teams assess fixture placement and predicted light distribution before installation. For a facade project, the design process may consider the wall dimensions, fixture positions, mounting distance and relevant photometric data.
For the Texas project, Creativity provided DIALux simulation and fixture layout optimization as part of its engineering support.
This process helps the customer review the proposed arrangement before installation and provides a clearer reference for discussing fixture positioning and lighting coverage.
Simulation is most useful when the design is based on accurate building measurements and appropriate photometric data for the selected fixture. The predicted result should also be checked against the actual installation conditions, surface materials and intended color effects.
For contractors, this engineering step can improve communication between the customer, lighting supplier and installation team.
A successful facade lighting project depends on more than the product itself. Several practical details should be reviewed before the fixtures are installed.
Wall height, facade width, architectural features and the available mounting locations all influence fixture spacing and aiming. A lighting layout should be developed around the actual building rather than applying a standard spacing rule to every project.
Different wall materials reflect light differently. Smooth, light-colored surfaces may produce a different appearance from dark, textured or highly reflective materials.
The intended RGBW colors should be evaluated in the context of the facade material and the expected viewing distance.
Outdoor installations require appropriate planning for power distribution, cable routing, fixture connections and DMX512 signal wiring. The actual wiring method should follow the fixture specifications and applicable electrical requirements.
A clear installation drawing can help the contractor understand fixture positions and the intended control arrangement.
Maintenance access, weather exposure, cable entry points and mounting security should be considered during product selection. The required protection level must match the actual site conditions and cannot be inferred from wattage alone.
These considerations are especially important for commercial buildings where facade lighting is expected to operate reliably over extended periods.
For architectural lighting contractors, choosing a supplier involves more than sourcing an LED wall washer at a competitive price. The supplier also needs to understand the project's optical requirements, control system and installation conditions.
As a Shenzhen-based LED wall washer manufacturer and LED lighting factory, Creativity supplies architectural LED lighting products and provides project-oriented technical support for suitable applications.
Depending on the project requirements, support may include:
•RGBW LED wall washer selection
•DIALux lighting simulation
•Fixture layout optimization
•DMX512 control consultation
•Wiring and installation guidance
•Technical coordination for customized lighting requirements
•Product recommendations for commercial facade applications
For customers comparing an LED wall washer factory with a general lighting reseller, direct communication with the manufacturer can help clarify product configuration, control compatibility and customization requirements.
The appropriate fixture should always be selected according to the building design, installation conditions and required lighting performance.
RGBW LED wall washers are only one category within the broader architectural lighting market. Depending on the building design, other fixture types may be required to create a complete lighting scheme.
RGBW LED flood lights can be used where a broader beam or a different mounting arrangement is needed to illuminate selected architectural features or exterior areas.
LED landscape flood lights can complement building facade lighting in outdoor environments where landscape elements and surrounding areas also need illumination.
RGBW LED downlights may be considered for entrances, covered areas and selected indoor or semi-outdoor spaces, subject to the product's installation rating.
The correct product combination depends on the architectural design and lighting objectives. A wall washer should not be treated as interchangeable with a flood light or pixel bar because their optical distribution and intended applications can differ significantly.
For project customers, coordinating the appropriate fixture types and control methods during the design stage can help create a more consistent overall lighting scheme.
Commercial facade lighting can serve several purposes beyond basic visibility. It can highlight architectural details, create a recognizable nighttime appearance and allow a property to change its visual presentation for different occasions.
RGBW technology adds flexibility by supporting both color effects and white-light operation within a compatible fixture system.
However, the value of RGBW lighting depends on the quality of the complete installation. Uniformity, appropriate brightness, controlled glare, reliable outdoor installation and a suitable control strategy all contribute to the final result.
The Texas project illustrates how a 50W DMX RGBW LED wall washer can be incorporated into a commercial facade lighting solution supported by lighting simulation and fixture layout optimization.
For building owners and contractors, the key is to choose fixtures and control systems according to the actual architectural requirements rather than focusing on product specifications in isolation.
A DMX RGBW LED wall washer is an architectural lighting fixture that combines red, green, blue and white LED channels with a compatible DMX control interface. It can illuminate wall surfaces and support programmable color effects, depending on the fixture design and control configuration.
RGBW adds a dedicated white channel to the red, green and blue channels. This provides an additional option for white-light operation alongside color-changing effects. The best configuration depends on the project's color requirements and white-light performance goals.
DMX512 can be suitable for architectural facade lighting when the fixtures and control system are compatible. It allows coordinated control of colors and lighting scenes. The network layout, addressing, wiring and controller capabilities should be confirmed during project planning.
DIALux can help evaluate fixture placement and predicted light distribution before installation. Accurate dimensions and appropriate photometric data are important for meaningful results, and the final appearance should also be checked against actual site conditions.
Useful information includes facade dimensions, wall height, available mounting positions, installation distance, surface material, desired lighting effect, outdoor conditions and preferred control protocol. These details help the manufacturer assess the appropriate fixture configuration.
The Texas architectural facade lighting project demonstrates the importance of combining the right LED wall washer with a suitable lighting layout and control system.
For commercial buildings and other architectural applications, Creativity supports project customers with RGBW LED wall washer products, DIALux lighting simulation, fixture layout consultation and technical assistance.
If you are planning an architectural facade lighting project in the United States or another market, share your building dimensions, installation requirements and desired lighting effects with our team.
Contact Creativity to discuss your DMX RGBW LED wall washer requirements and request product specifications or project-oriented technical support.
